Campagnolo 4001 Super Record (2nd gen. ver. 2)
Back
Report

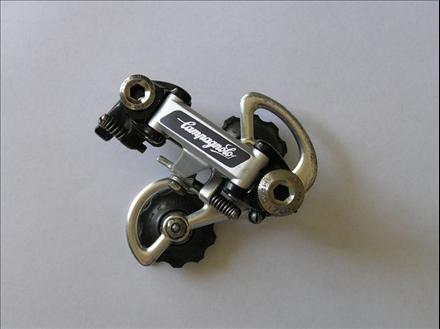

Main Photo
Category:  Rear Derailleurs
Name:  Campagnolo 4001 Super Record (2nd gen. ver. 2)
Brand:  Campagnolo
Primary Group:  Super Record
Model:  0102018
Years:  1984 - 1987
Country:  Italy
Weight:  181 grams
Added By: JFischer on 06/12/09
Updated By: cudak888 on 08/22/11
Additional Photos - click for full size
Campagnolo 4001 Super Record (2nd gen. ver. 2Campagnolo 4001 Super Record (2nd gen. ver. 2
Outer Plate MarkingsCampagnolo Super RecordInner Plate Markings
MaterialAluminum Alloy; TitaniumDesign CategoryInline parallelogram
Attachment Bolt Size6mm Allen KeyCable Attachment Bolt Size8mm Wrench
Shifting SystemsFrictionCable AdjusterNo
Cage LengthShortMax Cog Size28
Max Chain Wrap26 tooth difference
General Information

Second generation Super Record rear derilleur, this is the final revision version of the derailleur which includes a non-removable body spring.  These were made starting in the mid 80's and through the end of Super Record production.  Second photo shows a "matte finish" variation of the version 2 derailleur which illustrates the lack of the bolt between the upper pivot points.

1987 models do not carry a patent date.

Quality:Rarity:


See Incorrect Information? Log-in to submit report.
Additional Resources
Marketplace:Looking to buy one of these?Sell one like this
Resources:Reference & ChartsCatalogsExternal Resources
Component VariationsView Detailed List  Manage Variations
Variations of Component exist (Component is 1 of 4)BrandGroup
Campagnolo 4001, Super Record (1st Generation)CampagnoloSuper Record
Campagnolo 4001, Super Record (2nd gen, matte finish)CampagnoloSuper Record
Campagnolo 4001, Super Record (2nd gen, ver.1)CampagnoloSuper Record
Component Groups
Primary Group NameBrandQuick InfoBrowse Group Components
Super RecordCampagnolo1974 - 1987, Road RaceView 39 Components
