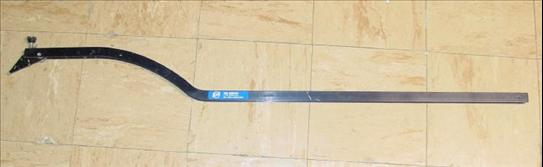

Main Photo
Photo Credit: VeloBase User JohnDThompson
Name: Park Tool FAG-1
Brand: Park Tool
Category: Alignment Tool
Model: FAG-1
Country: United States
Years: 1970s-1980s
Added By: JohnDThompson on 01/05/10
Updated By: JFischer on 01/07/10
Additional Photos - click for full size
General Information
Frame alignment gauge to check that the rear triangle is aligned with the centerline of the main frame. The tool is rested against the head tube and seat tube and the pointer adjusted to touch the outside of the dropout. This is repeated for the other side; if the pointer touches both sides without further adjustment, the frame is in alignment.
