Shimano SL-6200, 600EX Arabesque (clamp-on)
Back
Report

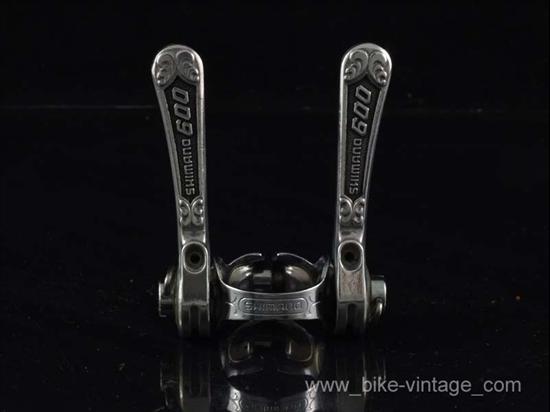

Main Photo
Category:  Shifters
Name:  Shimano SL-6200, 600EX Arabesque (clamp-on)
Brand:  Shimano
Primary Group:  600EX
Model:  SL-6200
Years:  1978 - 1984
Country:  Japan
Weight:  56 grams (Actual), incl. clamp
Added By: JFischer on 07/06/07
Updated By: Tombo on 07/25/18
Additional Photos - click for full size
Shimano SL-6200, 600EX Arabesque (clamp-on)Shimano SL-6200, 600EX Arabesque (clamp-on)Shimano SL-6200, 600EX Arabesque (clamp-on)Shimano SL-6200, 600EX Arabesque (clamp-on)Shimano SL-6200, 600EX Arabesque (clamp-on)
Shifter Type DowntubeAttachment Style Clamp-On; Downtube Clamp-On
Shifting SystemsFrictionLever MarkingsShimano 600
Lever MaterialAluminum; Steel
General Information
Size of the screws for the clamp version is M4,5(!), not M5 as usual!
In case of braze-on depending on the boss thread...



Quality:Rarity:


See Incorrect Information? Log-in to submit report.
Additional Resources
Resources:Reference & ChartsCatalogs
Component VariationsView Detailed List  Manage Variations
Variations of Component exist (Component is 1 of 2)BrandGroup
Shimano SL-6210, 600EX Arabesque (brazed-on)Shimano600EX
Component Groups
Primary Group NameBrandQuick InfoBrowse Group Components
600EX, 6200 seriesShimano1978 - 1987, Road RaceView 49 Components
Details:   The Shimano 600EX groupset was made in a multitude of variations and generations.  Often, more than one variation was being produced at the same time.  Included in the Shimano 600EX groupsets is the easily recognizable Arabesque group with detailed engravings and designs.  The 600EX group went from friction shifting at its introduction, to 6 speed SIS shifting later in the 1980's.
Brand Information(click to expand)

Shimano Model Number Prefix List:

BB Bottom Bracket BL Brake Lever BR BRake
CB Coaster Brake CJ Cassette Joint CN ChaiN
CP Chain Protecto CR Chain Ring CS Cassette Sprockets
DF chain DeFlector DH Dynamo Hub FC Front Crank
FD Front Derailleur FE Fork Ends FH FreeHub
FS Front Suspension HB HuB HD HanDle bar
HP Head Parts (Head Set) HS Handle Stem IF Inter-3 Freehub
LP LamP MF Multi Freewheel PD PeDal
RD Rear Derailleur RH Rollerbrake Hub RM RiM
RR ReflectoRs RS Rear Suspension SB Shift Brake lever (Nexus, ?)
SC Speed Calculator (cycle computer) SF Single Freewheel Freilaufritzel SG Speed chanGe hub
SH SHoes SL Shift Lever Schalthebel SM SMall parts
SP Seat Post SQ Seat Quick release SS Single Sprocket
TL TooL WH WHeel ST Shift Brake Lever (STI, Rapid Fire, etc)
