| Model: | Explosion |
| Brand: | Koga Miyata |
| Category: | Mountain Bike |
| Years: | 1994 - 1995 |
| Country: | Netherlands |
| Production: | Factory Production |
| Sold As: | Complete Bicycle |
| Material: | Aluminum |
| Construction: | Bonded |
| Drivetrain: | Derailleurs |
| Wheel Size: | 26" |
| Added By: | Elev12K on 02/07/12 |
| Updated By: | Elev12K on 02/17/12 |

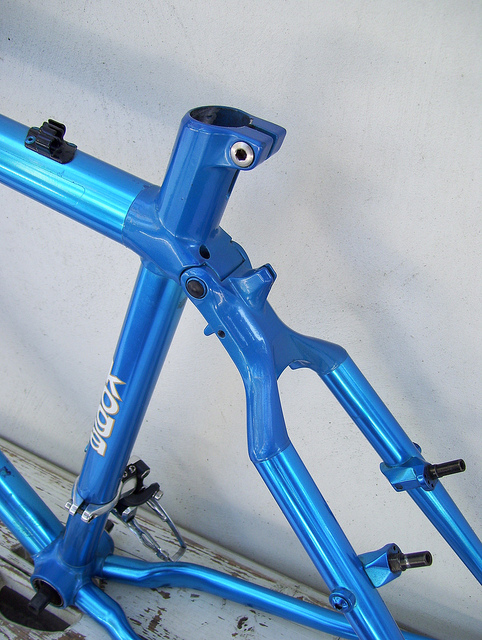

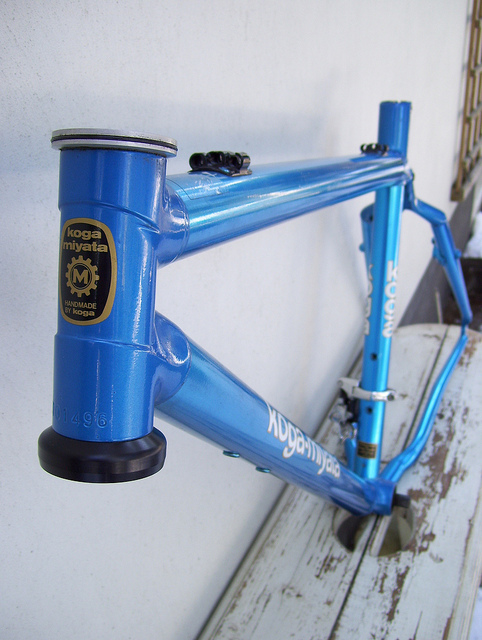

Frame Example Photos
This Frame Model has 1 Frame Example with additional photos. Choose from the options below to view them.
 View First Photo from each Example
View All Frame Example Photos
|
|
| Model General Information |
Aluminum tubing and cast aluminum lugs. Connections made through a unique bonding process, bolting and riviting (cable guides). A couple design features:
- snake stays that curl round the tyre and offer clearance for rings
- delta force monostay with integrated stops, with some models enabled use of a small damper (softail setup)
- no bridge between chainstays, to prevent mud collecting
- crud catcher mounts
- anti chain suck mounts Mountainbike pro Greg Herbold raced this frame in dual slalom events. In the US the identical frame was offered as Miyata Elevation 5,000. |
 |
| Primary Example: | Koga Miyata Explosion (1995) |
| Years: | 1995 | Sold As: | Unknown |
| Bottom Bracket: | English/ISO: 1.370 x 24 | Brake Mounting: | Cantilever studs |
| Lug Style: | | Brake Guides: | |
| Fork Style: | | Seat Stays: | |
| Fork Crown Style: | | Main Tubing: | |
| Rear Dropouts: | | Color(s): | |
|
