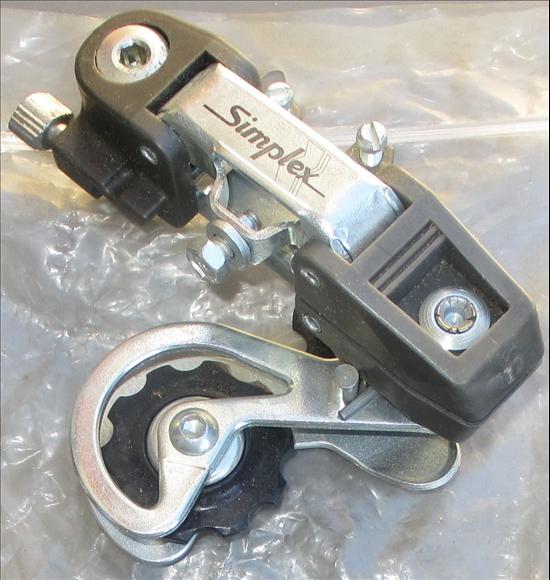

Main Photo
Category:  Rear Derailleurs
Name:  Simplex S002 T
Brand:  Simplex
Model:  11402
Years:  1989 - Early 1990's
Country:  France
Weight:  240 grams (Spec),
270 g in GT version
Added By: peterbman on 12/12/16
Updated By: tmundry67 on 01/27/22
Additional Photos - click for full size
Simplex S002 T
 Verify Component Photos
Outer Plate MarkingsSimplexInner Plate Markings
MaterialPlastic; SteelDesign CategoryInline parallelogram
Attachment Bolt SizeSimplex Special Bolt for threadless Simplex DropoutsCable Attachment Bolt Size8mm Wrench
Shifting SystemsFrictionCable AdjusterYes
Cage LengthMediumMax Cog Size28
Max Chain Wrap30
General Information
This model is shown in a Simplex catalogue from 1989 (cf. Disraeli Gears). Maybe this should be a new version of the very long and million fold produced S 001. It is of the same rather low quality and finish as the Alpha or SX 2 models. Pressed steel with zinc coating finish and Delrin houses. There is even no longer a lower bolt holding tthe pulley cage which you can disassemble - it is just a kind of riveted bolt. At least you could fit this to frames with derailleur hangers, threaded or unthreaded.
Quality:Rarity:


See Incorrect Information? Log-in to submit report.
Additional Resources
Resources:Reference & ChartsCatalogsExternal Resources
Brand Information(click to expand)

Known for their black plastic (Delrin) derailleurs during the "bike boom" of the 1970's, they were at the forefront of innovation over the years, producing such highly regarded items as the Super LJ derailleurs, Retrofriction shifters, and very popular line of seat posts.
