Shimano Uniglide Titlist
Back
Report

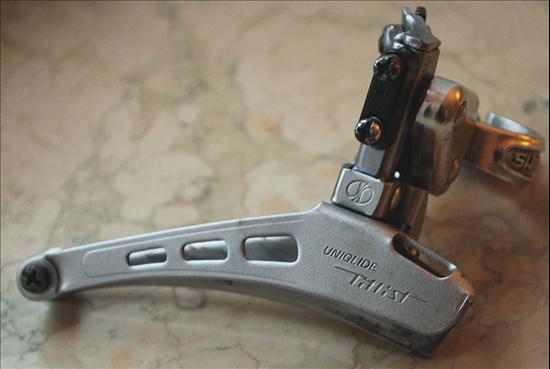

Main Photo
Category:  Front Derailleurs
Name:  Shimano Uniglide Titlist
Brand:  Shimano
Model:  EB-200
Years:  Mid 1970's - Late 1970's
Country:  Japan
Weight:  135 grams (Actual)
Added By: flim on 05/18/13
Updated By: Gazelleer on 08/14/17
Additional Photos - click for full size
Shimano Uniglide TitlistShimano Uniglide TitlistShimano Uniglide TitlistShimano Uniglide TitlistShimano Uniglide Titlist
# Rings Designed For DoubleOuter Plate Markings"Uniglide" "Titlist" with three rectangluar holes
Inner Plate Markings"Shimano" "Product of Japan"Clamp MarkingsShimano
Inner Clamp MarkingsDatestampDesign CategoryParallelogram
Pivot Arm MarkingsPlate MaterialNickle plated steel
Clamp Style28.6mm ClampCable Attachment Bolt8mm Wrench
CableStop YesClamp Bolt Type8mm Wrench
Max Ring Difference 14T
General Information
This front derailleur looks an awfull lot like the FD-6100, only the markings on the outerplate are different and the plastic part where the adjuster screws are placed is black instead of white/light gray. I was unable to find anything about this part so I created another slot for it instead of listing it as a variation of the FD-6100. This one is dated "BE" which would mean May 1977.
Quality:Rarity:


See Incorrect Information? Log-in to submit report.
Additional Resources
Resources:Reference & ChartsCatalogs
Brand Information(click to expand)

Shimano Model Number Prefix List:

BB Bottom Bracket BL Brake Lever BR BRake
CB Coaster Brake CJ Cassette Joint CN ChaiN
CP Chain Protecto CR Chain Ring CS Cassette Sprockets
DF chain DeFlector DH Dynamo Hub FC Front Crank
FD Front Derailleur FE Fork Ends FH FreeHub
FS Front Suspension HB HuB HD HanDle bar
HP Head Parts (Head Set) HS Handle Stem IF Inter-3 Freehub
LP LamP MF Multi Freewheel PD PeDal
RD Rear Derailleur RH Rollerbrake Hub RM RiM
RR ReflectoRs RS Rear Suspension SB Shift Brake lever (Nexus, ?)
SC Speed Calculator (cycle computer) SF Single Freewheel Freilaufritzel SG Speed chanGe hub
SH SHoes SL Shift Lever Schalthebel SM SMall parts
SP Seat Post SQ Seat Quick release SS Single Sprocket
TL TooL WH WHeel ST Shift Brake Lever (STI, Rapid Fire, etc)
