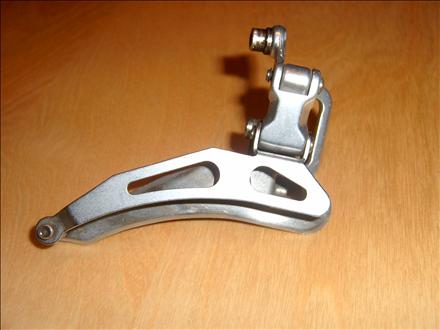

Mavic 811 (French style braze-on)
Main Photo
Category:  Front Derailleurs
Name:  Mavic 811 (French style braze-on)
Brand:  Mavic
Model:  811
Years:  1984 - 1985
Country:  France
Weight:  100 grams
Added By: Jenser on 10/06/07
Updated By: JFischer on 08/22/11
Additional Photos - click for full size
Mavic 811 (French style braze-on)Mavic 811 (French style braze-on)Mavic 811 (French style braze-on)
 Verify Component Photos
# Rings Designed For DoubleOuter Plate Markings
Inner Plate MarkingsClamp MarkingsMAVIC
Inner Clamp MarkingsDesign CategoryParallelogram
Pivot Arm MarkingsPlate MaterialSteel
Clamp StyleBraze-on TabCable Attachment Bolt4mm Allen Key
CableStop NoClamp Bolt Type5mm Allen Key
Max Ring Difference 20T
General Information
Housings and link rods are polished and anodized dural, fork made of casted hardened steel, tempered and chromed.
Every type of front derailleur (clamp, braze, italian braze) had another model number.
'MAVIC' marked on Braze On Tab.
See Incorrect Information? Log-in to submit report.
Additional Resources
Resources:Reference & ChartsCatalogsExternal Resources
Component VariationsView Detailed List  Manage Variations
Variations of Component exist (Component is 1 of 2)BrandGroup
Mavic 810Mavic
Brand Information(click to expand)
 Mavic is best known for its lightweight aluminum rims and complete wheels, which they continue to produce today.  They also produced a full range of drive train components in the past.  Mavic made a failed attempt to popularize an electronic shifting system in the early 90's.
