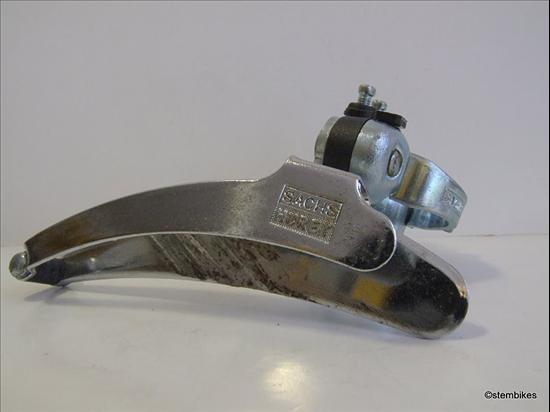

Main Photo
Category:  Front Derailleurs
Name:  Sachs Huret 700 Avant
Brand:  Sachs Huret
Primary Group:  Avant
Model:  700 Avant
Years:  Mid 1980's
Country:  France
Added By: JFischer on 11/09/10
Updated By: JFischer on 11/09/10
Additional Photos - click for full size
Sachs Huret 700 AvantSachs Huret 700 AvantSachs Huret 700 Avant
 Verify Component Photos
# Rings Designed For DoubleOuter Plate MarkingsSachs Huret
Inner Plate MarkingsPatented Made In FranceClamp MarkingsSachs Huret
Inner Clamp MarkingsDesign CategoryParallelogram
Pivot Arm MarkingsNonePlate MaterialChrome plated steel
Clamp Style28.6mm ClampCable Attachment Bolt8mm Wrench
CableStop YesClamp Bolt Type8mm Wrench
Max Ring Difference
General Information

Quality:Rarity:


See Incorrect Information? Log-in to submit report.
Additional Resources
Resources:Reference & ChartsCatalogs
Component Groups
Primary Group NameBrandQuick InfoBrowse Group Components
AvantSachs HuretView 2 Components
Brand Information(click to expand)
 Sachs-Huret is basically Huret operating under (German) Sachs' ownership, during the 80's.
